Pin Usage Diagrams Available for Prototyping System for Teensy 4.1

Thanks to the efforts of one of our customers, we now have pinout diagrams available for the Prototyping System baseboard to help clarify how the various pins of the Teensy 4.1 get used on the baseboard. This is very helpful in consolidating this information into a more easily digestible format.

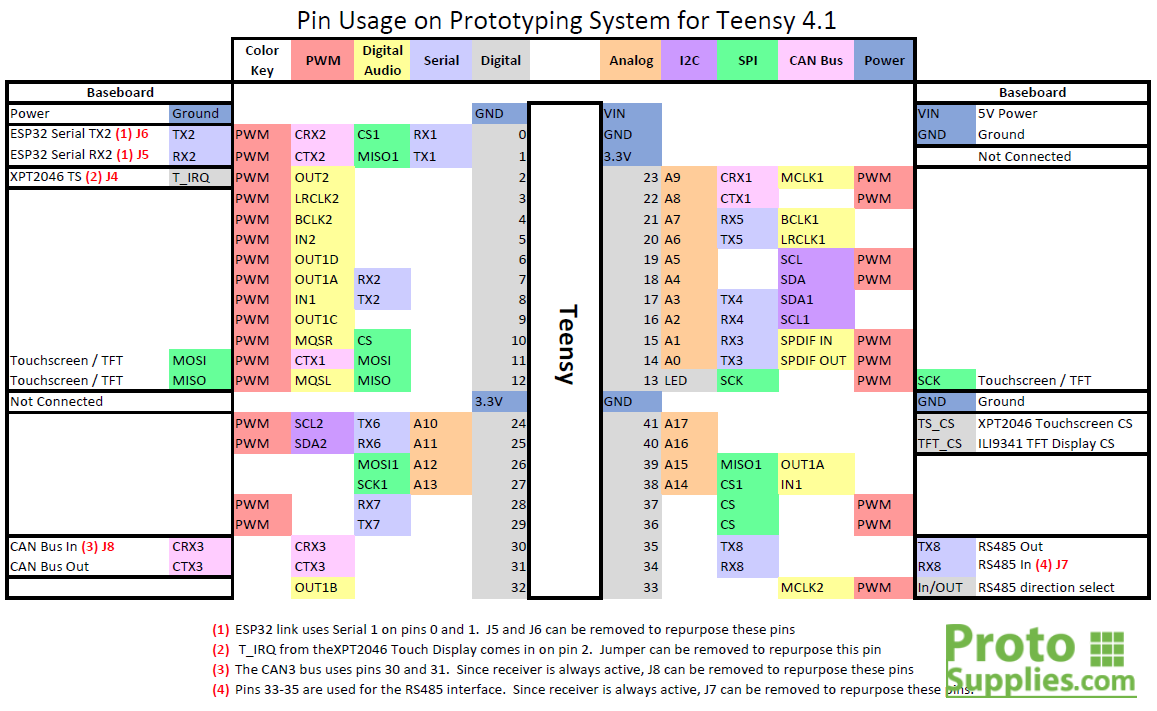

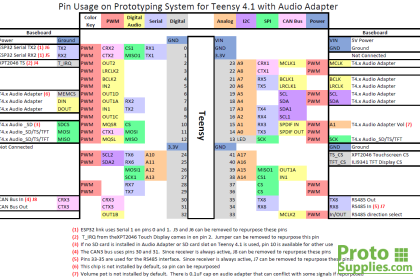

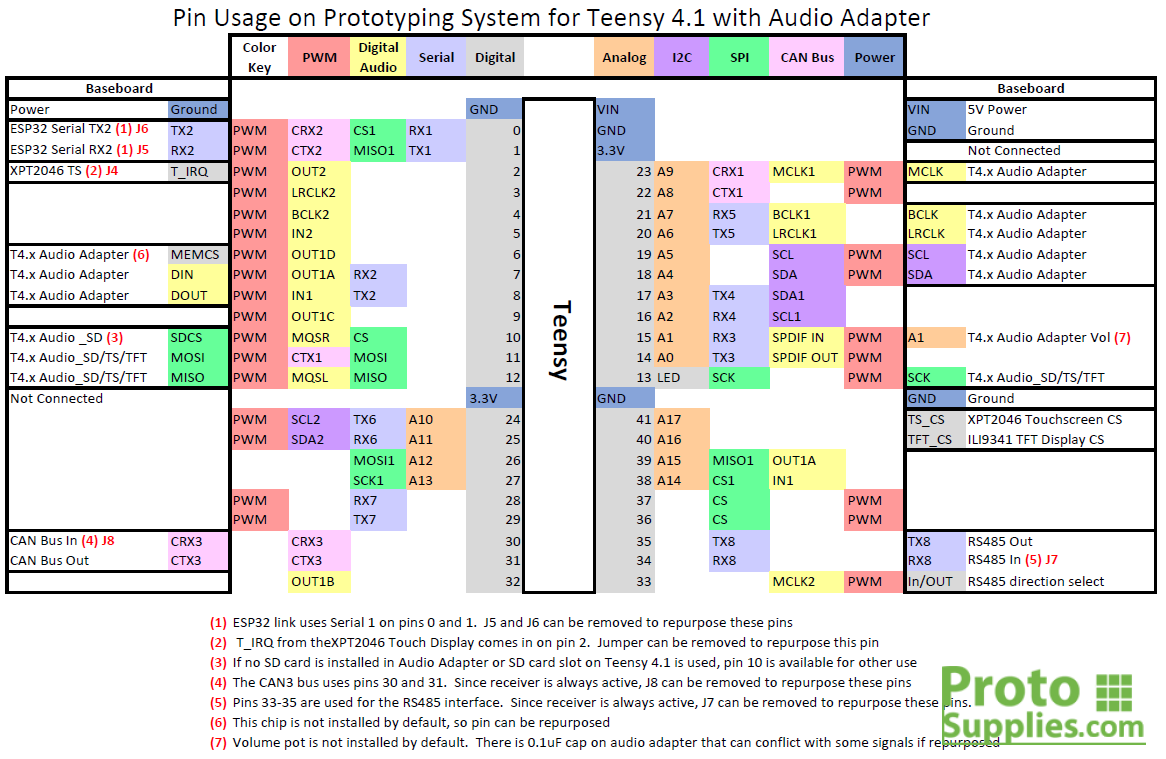

There are two versions. One is the basic baseboard and the other also includes the Audio Adapter which is commonly used with these systems.

They are available as PNG, PDF and there is an Excel version for anyone that may want to track their own pin usage as they work with the system.

PDF and Excel formats of the above pinouts are available below:

Prototyping System for Teensy 4.1 Pin Usage.pdf

Prototyping System for Teensy 4.1 with Audio Pin Usage.pdf

Prototyping System for Teensy 4.1 Pin Usage.xlsx

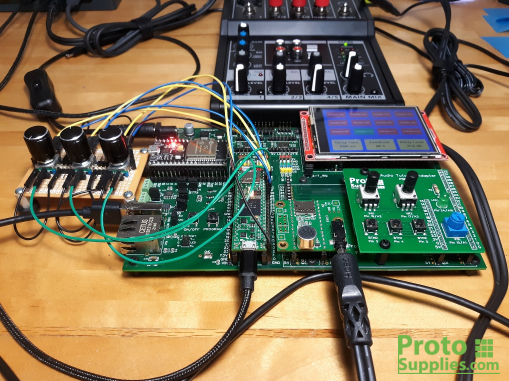

I want to thank Donald Swearingen who helped with putting this together. He is an avid musician and interactive electronic enthusiast who builds and codes interesting projects like the one shown below using the Prototyping System for Teensy 4.1.

You can find out more about him at his website.
